Using a for loop which has range of values in the constraint formulation

Answered

Comments

51 comments

  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    Thank you so much for your help so far. Your comments were really useful. I identified the error, it was due to some another constraint.

    My doubt is :
    Suppose for my objective function:

    obj=gp.quicksum(price_energy[t-1]*EnergyResource[res,t] for res in e_res for t in time1) - gp.quicksum(sp_price[t-1]*SpinningResource[res,t] for res in s_res for t in time1)

    The 1st term:

    gp.quicksum(price_energy[t-1]*EnergyResource[res,t] for res in e_res for t in time1)

    represents the EN cost.

    and the 2nd term:

    gp.quicksum(sp_price[t-1]*SpinningResource[res,t] for res in s_res for t in time1)

    represents the SP revenue

    My question is : Is it possible in Gurobi to know the values of these terms in the objective function after the optimisation has been performed?

    Just like below:

    Thank you.
    Margi.





    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    Hi Margi,

    Good to hear that you are making progress.

    My question is : Is it possible in Gurobi to know the values of these terms in the objective function after the optimisation has been performed?

    Yes, there are two ways to get those values. Both ways are performed after the optimization process was successful.

    First one:

    You can use solution information and recompute the values:

    if model.status == GRB.OPTIMAL:
    EN_value = 0
    SP_value = 0
    for t in time1:
      for res in e_res:
    EN_value += price_energy[t-1]*EnergyResource[res,t].X
      for res in s_res:
    SP_value +=sp_price[t-1]*SpinningResource[res,t].X

    print(f"EN_value: {EN_value}")
    print(f"SP_value: {SP_value}")

    Second one:

    You can add auxiliary variable to catch these values and let Gurobi do the job

    aux_EN_val = model.addVar(lb=-GRB.INFINITY, name="aux_EN_val")
    model.addConstr(aux_EN_val == gp.quicksum(price_energy[t-1]*EnergyResource[res,t] for res in e_res for t in time1))
    aux_SP_val = model.addVar(lb=-GRB.INFINITY, name="aux_SP_val")
    model.addConstr(aux_SP_val == gp.quicksum(sp_price[t-1]*SpinningResource[res,t] for res in s_res for t in time1))

    ...

    model.optimize()

    if model.status == GRB.OPTIMAL:
    print(f"EN_value: {aux_EN_val.X}")
    print(f"SP_value: {aux_SP_val.X}")

    Here there is the downside of introducing redundant variables and equalities to the model, but as long as this is not done too often, it is fine and should not have any impact on solver's performance.

    For convenience reasons I would prefer the second option. However, both options are correct and it is up to you to choose one.

    Best regards,
    Jaromił

    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    Thank you so much. I'll try to implement the second approach in my code.

    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    Suppose these are price values for 96 time slots:

    price_energy = [33, 33, 33, 33, 30, 30, 30, 30, 29, 29, 29, 29, 28, 28, 28, 28, 34, 34, 34, 34, 50, 50, 50, 50, 71, 71, 71, 71, 77, 77, 77, 77, 81, 81, 81, 81, 87, 87, 87, 87, 92, 92, 92, 92, 94, 94, 94, 94, 92, 92, 92, 92, 90, 90, 90, 90, 90, 90, 90, 90, 87, 87, 87, 87, 85, 85, 85, 85, 79, 79, 79, 79, 79, 79, 79, 79, 77, 77, 77, 77, 76, 76, 76, 76, 65, 65, 65, 65, 53, 53, 53, 53, 34, 34, 34, 34]

    & Suppose these are the generation values for 96 time slots:

    E_Wind=[7.623491061,4.517699791,3.555646106,2.48438853,0.391585596,1.421687974,1.860133449,0.686599093,
          2.214638619,2.942800387,3.988794377,6.969082667,9.23995314,10.64126725,10.46401467,10.11317679,
          10.25090409,9.420465543,8.118983344,8.649518668,8.125910457,8.615698059,10.46931187,14.98334437,
          19.50308155,17.39479448,14.5269699,12.61508684,14.02984771,15.76651556,17.33734019,17.38501503,
          19.98105231,21.98991494,27.85554933,35.53486477,36.97855651,37.74094637,40,39.9535476,39.66668364,
          37.53965263,29.76783986,23.27020832,17.78026792,14.89940406,11.82376611,10.21626853,9.290887791,
          7.289359751,5.651708858,6.812203942,8.832883411,10.47705394,12.23491061,11.11801559,11.76182957,
          14.3696837,12.55396526,11.41751133,11.80461468,13.22385779,12.81026843,12.90847043,10.34095655,
          9.97952427,8.952681709,10.87271431,8.957571436,8.596954108,8.731014109,9.608720012,11.57846483,
          12.4961035,13.05271736,11.58457699,10.10910202,10.91916671,11.02225844,10.63556257,8.29908827,
          7.467427291,6.326491112,5.687566852,4.413793103,6.339530383,5.93286813,2.206081597,1.344674782,2.710130902,
          2.766362757,2.951764886,3.475373096,1.560230225,0.514236235,0]


    Now what I do is generate 50 random numbers for price as well as generation for each time slot.

    import numpy as np

    energy_price = [33.28, 30.00, 29.15, 28.49, 34.66, 50.01, 71.52, 77.94, 81.97, 87.90, 92.76, 94.98, 92.31, 90.03, 90.09, 87.44, 85.37, 79.97, 79.92, 77.83, 76.28, 65.06, 53.07, 34.16]

    # Generate 50 random numbers for each mean in energy_price with variance 5
    random_numbers_dict = {}

    for mean in energy_price:
        random_numbers = np.random.normal(loc=mean, scale=np.sqrt(5), size=50)
        random_numbers_dict[mean] = random_numbers.tolist()

    # Print the dictionary
    for mean, random_numbers in random_numbers_dict.items():
        print(f"Mean: {mean}, Random Numbers: {random_numbers}")

    So I intend to perform optimisation at each sample for each mean.

    So I reframed this constraint as:
    Before it was:

    for res in res_list2:
        for t in time1:
             # add constr aux = EnergyResouce - E
            steel.addConstr(aux[res,t] == EnergyResource[res,t] - E_Wind[t-1],name="aux_constr_%s_%d"%(res,t))
            # add constr maxaux = max(0, aux)
            steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d"%(res,t))

    Now it is :

    for mean, random_numbers in random_numbers_dict.items():
        for number in random_numbers:
            for res in res_list2:
                for t in time1:
                     # add constr aux = EnergyResouce - E
                    steel.addConstr(aux[res,t] == EnergyResource[res,t] - number ,name="aux_constr_%s_%d"%(res,t))
                     # add constr maxaux = max(0, aux)
                    steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d"%(res,t))

    The final optimisation loop is :

    for mean, random_numbers in random_numbers_dict.items():
        for number in random_numbers:
            obj=gp.quicksum(number*maxaux[res,t] for res in e_res for t in time1)
            steel.setObjective(obj,GRB.MINIMIZE)
          steel.optimize()

    Does it seems correct in terms of Gurobi Format?

    Also how do I get objective function value at each mean, Meaning :-
    At each price --> At each random value ---> There is some objective value.
    So at each price --> There will be 50 objective function values, How do I retrive and store it at each iteration of price ? Because I require it to perform further calculation?

    I hope it is clear. If not, please let me know.
    Your guidance will be very important.

    Best regards,
    Margi

    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    Hi Margi,

    I think it should be

    for mean in random_numbers_dict:
    reandom_numbers = random_numbers_dict[mean]     for number in random_numbers:

    You can always test Python only stuff yourself by just using \(\texttt{print}\) statements and running the code, e.g.,

    for mean, random_numbers in random_numbers_dict.items():
        for number in random_numbers:
    print(number)

    and see whether you get all numbers you want.

    Also how do I get objective function value at each mean, Meaning :-
    At each price --> At each random value ---> There is some objective value.
    So at each price --> There will be 50 objective function values, How do I retrive and store it at each iteration of price ? Because I require it to perform further calculation?

    After the optimization process is finished, you can retrieve the objective value by accessing the ObjVal attribute.

    steel.setObjective(obj,GRB.MINIMIZE)
    steel.optimize()
    objval = -GRB.INFINITY
    if (steel.status == GRB.OPTIMAL):
    objval = steel.ObjVal
    else:
    print("CANNOT RETRIEVE OBJVAL")
    # do something with the objval value

    Best regards,
    Jaromił

    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    Thank you for your input.

    The changes in the model I have is just addition of for loop.
    The code is below:



    price_energy = [33, 33, 33, 33, 30, 30, 30, 30, 29, 29, 29, 29, 28, 28, 28, 28, 34, 34, 34, 34, 50, 50, 50, 50, 71, 71, 71, 71, 77, 77, 77, 77, 81, 81, 81, 81, 87, 87, 87, 87, 92, 92, 92, 92, 94, 94, 94, 94, 92, 92, 92, 92, 90, 90, 90, 90, 90, 90, 90, 90, 87, 87, 87, 87, 85, 85, 85, 85, 79, 79, 79, 79, 79, 79, 79, 79, 77, 77, 77, 77, 76, 76, 76, 76, 65, 65, 65, 65, 53, 53, 53, 53, 34, 34, 34, 34]

    E_Wind=[7.623491061,4.517699791,3.555646106,2.48438853,0.391585596,1.421687974,1.860133449,0.686599093,
          2.214638619,2.942800387,3.988794377,6.969082667,9.23995314,10.64126725,10.46401467,10.11317679,
          10.25090409,9.420465543,8.118983344,8.649518668,8.125910457,8.615698059,10.46931187,14.98334437,
          19.50308155,17.39479448,14.5269699,12.61508684,14.02984771,15.76651556,17.33734019,17.38501503,
          19.98105231,21.98991494,27.85554933,35.53486477,36.97855651,37.74094637,40,39.9535476,39.66668364,
          37.53965263,29.76783986,23.27020832,17.78026792,14.89940406,11.82376611,10.21626853,9.290887791,
          7.289359751,5.651708858,6.812203942,8.832883411,10.47705394,12.23491061,11.11801559,11.76182957,
          14.3696837,12.55396526,11.41751133,11.80461468,13.22385779,12.81026843,12.90847043,10.34095655,
          9.97952427,8.952681709,10.87271431,8.957571436,8.596954108,8.731014109,9.608720012,11.57846483,
          12.4961035,13.05271736,11.58457699,10.10910202,10.91916671,11.02225844,10.63556257,8.29908827,
          7.467427291,6.326491112,5.687566852,4.413793103,6.339530383,5.93286813,2.206081597,1.344674782,2.710130902,
          2.766362757,2.951764886,3.475373096,1.560230225,0.514236235,0]

    # Generate 50 random numbers for each mean in price_energy with variance 5
    electricity_random_numbers_dict = {}

    for mean in price_energy:
        random_numbers = np.random.normal(loc=mean, scale=np.sqrt(5), size=50)
        electricity_random_numbers_dict[mean] = random_numbers.tolist()


    # Generate 50 random numbers for each mean in E_Wind with variance 5
    generation_random_numbers_dict = {}

    for mean in E_Wind:
        shape = 2
        # Scale parameter calculation
        scale = mean / (stats.gamma(1 + 1/shape).mean()**(1/shape))
        random_numbers = np.random.weibull(shape, size=50) * scale
        generation_random_numbers_dict[mean] = random_numbers.tolist()
    Constraint:

    for mean in generation_random_numbers_dict:
        random_numbers = generation_random_numbers_dict[mean]
        for number in random_numbers:
            for res in res_list2:
                for t in time1:
                     # add constr aux = EnergyResouce - E
                    steel.addConstr(aux[res,t] == EnergyResource[res,t] - number ,name="aux_constr_%s_%d"%(res,t))
                     # add constr maxaux = max(0, aux)
                  steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d"%(res,t))
    Objective function:

    Objective_values =[]
    for mean in electricity_random_numbers_dict:
        random_numbers =electricity_random_numbers_dict[mean]
        for number in random_numbers:
            obj=gp.quicksum(number*maxaux[res,t] for res in e_res for t in time1)
            steel.setObjective(obj,GRB.MINIMIZE)
            steel.optimize()
            objval = -GRB.INFINITY
            if (steel.status == GRB.OPTIMAL):
                objval = steel.ObjVal
                Objective_values.append(objval)
            else:
                print("CANNOT RETRIEVE OBJVAL")

    Result  for each optimisation run:

    Gurobi Optimizer version 11.0.0 build v11.0.0rc2 (win64 - Windows 10.0 (19045.2))

    CPU model: 12th Gen Intel(R) Core(TM) i7-1255U, instruction set [SSE2|AVX|AVX2]count: 10 physical cores, 12 logical processors, using up to 12 threads

    Optimize a model with 477504 rows, 23739 columns and 1032788 nonzeros
    Model fingerprint: 0xf736a10b
    Model has 460800 general constraints
    Variable types: 288 continuous, 23451 integer (11520 binary)
    Coefficient statistics:
      Matrix range     [2e-01, 2e+01]
      Objective range  [3e+01, 3e+01]
      Bounds range     [1e+00, 2e+00]
      RHS range        [4e-02, 8e+01]
    Presolve removed 0 rows and 126 columns
    Presolve time: 11.96s

    Explored 0 nodes (0 simplex iterations) in 12.01 seconds (2.99 work units)
    Thread count was 1 (of 12 available processors)

    Solution count 0

    Model is infeasible
    Best objective -, best bound -, gap -
    CANNOT RETRIEVE OBJVAL
    Gurobi Optimizer version 11.0.0 build v11.0.0rc2 (win64 - Windows 10.0 (19045.2))

    This repeats for every optimisation run.

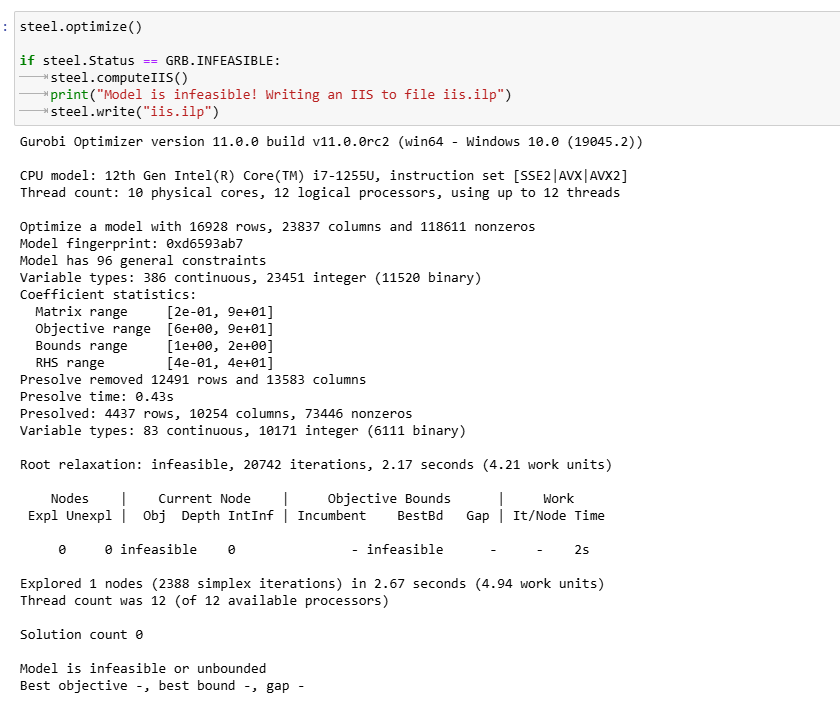

    Did I represent anything incorrect? Can you throw some light why model suddenly became infeasible?

    Best Regards,
    Margi

    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    Your model is infeasible. You need to find out why. Please refer to How do I determine why my model is infeasible? in this case.

    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    Thank you for directing me. I understand to check the constraint by writing steel.write("steel.lp").I followed the same.

    I am recognizing the problem with the below constraint:

    Before it was:


    for res in res_list2:
        for t in time1:
             # add constr aux = EnergyResouce - E
            steel.addConstr(aux[res,t] == EnergyResource[res,t] - E_Wind[t-1],name="aux_constr_%s_%d"%(res,t))
            # add constr maxaux = max(0, aux)
          steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d"%(res,t))

    After it is :


    for res in res_list2:
      for t in time1:   #loop for time slots

          for mean in generation_random_numbers_dict: # loop for each generation value

              random_numbers = generation_random_numbers_dict[mean] # getting 50 random numbers
                for number in random_numbers:
                    print(number)
                    steel.addConstr(aux[res,t] == EnergyResource[res,t] - number ,name="aux_constr_%s_%d"%(res,t))
                    steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d"%(res,t))

    I checked,I mentioned the loop correctly.

    Initially for each t, there was only one generation value.

    Now for each t, there are 50 generation values, and I loop them in the innermost loop.

    I double checked the .lp files.
    I think aux_constr_124_1 is repeating 50 times. How do I take care of it within the loop ?Is there a way in Gurobi to take care of this naming conventions? because I think I mentioned the constraint correctly , but the issue is because of the naming conventions?

    Best regards,
    Margi

    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    Is it possible that you put the loop

    for mean in generation_random_numbers_dict: # loop for each generation value
                random_numbers = generation_random_numbers_dict[mean] # getting 50 random numbers
                for number in random_numbers:

    over every constraint set that you build and additionally over the objective and optimize statement?

    If yes, then this means that you add all constraints to one and the same model and then optimize over it with different objectives multiple times. You should rather implement something like the following pseudo code

    def buildModel(number):
    # your code which constructs the whole model and optimizes it
    ...
    objval = -GRB.INFINITY
     if (model.status == GRB.OPTIMAL):     objval = model.ObjVal
    return objval   else:     print("CANNOT RETRIEVE OBJVAL")
    exit()


    # start of the big loop
    for mean in generation_random_numbers_dict: # loop for each generation value
    random_numbers = generation_random_numbers_dict[mean] # getting 50 random numbers
    for number in random_numbers:
    print(f"Running model for mean {mean} and number {number}")
    objval = buildModel(number)
           Objective_values.append(objval)
    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    All other constraints in my model doesn't require 'number' in their formulation, even though do they require to put the loop around them?

    For ex:

    y={}
    for res_cat, resources in res_cat2idx.items():
            if 'H_A_S' not in res_cat or 'H_A_S3' in res_cat:
                continue

            y[res_cat]= list(resources)

    Transfertime = {}

    for mean in generation_random_numbers_dict:
        random_numbers = generation_random_numbers_dict[mean]
        for number in random_numbers:
            for key in y:
                y_list = y[key]
              Transfertime=steel.addConstrs((Resources[res,t]  == 0 for res in y_list for t in time1),name ="Transfertime")

    The only constraint that requires 'number' in the formulation is below:

    for res in res_list2:
        for t in time1:   #loop for time slots

            for mean in generation_random_numbers_dict: # loop for each generation value

                random_numbers = generation_random_numbers_dict[mean] # getting 50 random numbers
                for number in random_numbers:
                    print(number)
                    steel.addConstr(aux[res,t] == EnergyResource[res,t] - number ,name="aux_constr_%s_%d"%(res,t))
                    steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d"%(res,t))

    Regards,

    Margi



    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    Hi Margi,

    All other constraints in my model doesn't require 'number' in their formulation, even though do they require to put the loop around them?

    Here you have the freedom of choice.

    You can put the loops around everything and always build the model from scratch. This is the easy method and I would recommend it as long as your model building process does not take too long.

    You can add all unaffected constraints to the model only exactly once. You can then put the loops only around the affected constraints and objective and adjust them in every iteration. In this case, you again have two options. You will either have to remove all affected constraints after the optimization process, because you will add new ones in the next loop iteration. Or you add the constraints without the number value once at the beginning, and then in the loops, you only adjust the RHS attribute of each affected constraint. For that you should save the old number value so you can first subtract/add it to the RHS and then add/subtract the new number value.

    Best regards,
    Jaromił

    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    Thank you. I'll go with your recommended option.

    The only doubt is regarding the affected constraint. I am sure, I mentioned the constraint correctly. But I think instead of 1 constraint in each time slot, now there are 50 with the same names. It is true, as per logic.

    But due to same naming conventions, there is a warning message. Will it affect the feasibility?

    Constraint:

    for res in res_list2:
        for t in time1:
            time_mean_dict[t] = mean
            random_numbers = generation_random_numbers_dict[mean]
            for number in random_numbers:
                steel.addConstr(aux[res,t] == EnergyResource[res,t] - number ,name="aux_constr_%s_%d"%(res,t))
                steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d"%(res,t))

    .LP file:



     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0
     aux_constr_124_1: - EnergyResource[124,1] + aux[124,1] = 0

    It repeats for maxaux constraint also. So each of those is repeated 50 times.

    Warning:

    Is there a way to handle it ?



    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    The only doubt is regarding the affected constraint. I am sure, I mentioned the constraint correctly. But I think instead of 1 constraint in each time slot, now there are 50 with the same names. It is true, as per logic.

    Yes, there will be 50 constraints with the same name. Are you sure that you want to add all 50? In the output you posted it looks like \(\texttt{number=0}\) for all cases.

    But due to same naming conventions, there is a warning message. Will it affect the feasibility?

    No, this will not affect feasibility. It will just make retrieving constraint information harder.

    Is there a way to handle it ?

    Sure, as long as \(\texttt{number}\) is unique, you can use this in the name.

     for number in random_numbers:
       steel.addConstr(aux[res,t] == EnergyResource[res,t] - number ,name="aux_constr_%s_%d_%f"%(res,t, number))
       steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d_%f"%(res,t, number))

    If \(\texttt{number}\) is not unique, you can add a counter

    counter = 0
    for number in random_numbers:
    steel.addConstr(aux[res,t] == EnergyResource[res,t] - number ,name="aux_constr_%s_%d_%d_%f"%(res,t, counter,mean))
    steel.addGenConstrMax(maxaux[res,t],[aux[res,t]],0.0,name="maxconstr_%s_%d_%d_%f"%(res,t, counter,mean))
    counter += 1
    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    I am facing a very weird error. I want to understand where I am going wrong.

    So I checked the constraint formulation of SpinningResource. It is what it  exactly should be.

    The cost/objective value I am getting through Gurobi is 76. I retrieved the solution and tried to calculate the cost by hand and according to constraint formulation also it should be 73. I am not sure why Gurobi is not reaching the optimal. The optimality gap is 0.01%.

    For ex: According to constraint formulation of Gurobi: The value of SpinningResource at 85th time step should be 34. But when I see the solution file, It is 0.

    Can you guide me what I could check to understand this error?



    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    The cost/objective value I am getting through Gurobi is 76. I retrieved the solution and tried to calculate the cost by hand and according to constraint formulation also it should be 73. I am not sure why Gurobi is not reaching the optimal. The optimality gap is 0.01%.

    Could you please post the log output of the run?

    How exactly do you retrieve the objective value and how do you calculate it by hand?

    You could write the model to an LP file and share it. Note that uploading files in the Community Forum is not possible but we discuss an alternative in Posting to the Community Forum.

    Best regards,
    Jaromił

    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    Please find the log file :

    Gurobi Optimizer version 11.0.0 build v11.0.0rc2 (win64 - Windows 10.0 (19045.2))

    CPU model: 12th Gen Intel(R) Core(TM) i7-1255U, instruction set [SSE2|AVX|AVX2]
    Thread count: 10 physical cores, 12 logical processors, using up to 12 threads

    Optimize a model with 17042 rows, 23837 columns and 125422 nonzeros
    Model fingerprint: 0xb5dd7353
    Model has 96 general constraints
    Variable types: 386 continuous, 23451 integer (11520 binary)
    Coefficient statistics:
      Matrix range     [2e-01, 9e+01]
      Objective range  [2e+00, 9e+01]
      Bounds range     [1e+00, 2e+00]
      RHS range        [4e-01, 4e+01]
    Presolve removed 12550 rows and 13547 columns
    Presolve time: 0.58s
    Presolved: 4492 rows, 10290 columns, 78880 nonzeros
    Variable types: 94 continuous, 10196 integer (6112 binary)

    Root simplex log...

    Iteration    Objective       Primal Inf.    Dual Inf.      Time
       28170    7.5378400e+04   3.876600e+02   0.000000e+00      5s
       28521    7.5388408e+04   0.000000e+00   0.000000e+00      5s

    Root relaxation: objective 7.538841e+04, 28521 iterations, 4.45 seconds (6.27 work units)

        Nodes    |    Current Node    |     Objective Bounds      |     Work
     Expl Unexpl |  Obj  Depth IntInf | Incumbent    BestBd   Gap | It/Node Time

         0     0 75388.4080    0  925          - 75388.4080      -     -    5s
    H    0     0                    118184.73649 75388.4080  36.2%     -    7s
         0     0 75931.9942    0  864 118184.736 75931.9942  35.8%     -    9s
    H    0     0                    95200.736489 75932.3238  20.2%     -    9s
    H    0     0                    95199.736489 75932.3238  20.2%     -    9s
         0     0 75958.8549    0  781 95199.7365 75958.8549  20.2%     -   10s
         0     0 75964.4529    0  874 95199.7365 75964.4529  20.2%     -   11s
         0     0 75964.7616    0  894 95199.7365 75964.7616  20.2%     -   11s
         0     0 75964.7616    0  905 95199.7365 75964.7616  20.2%     -   11s
         0     0 75964.7648    0  886 95199.7365 75964.7648  20.2%     -   11s
    H    0     0                    93981.653155 75964.7686  19.2%     -   12s
         0     0 75964.7686    0  855 93981.6532 75964.7686  19.2%     -   12s
         0     0 75965.5734    0  895 93981.6532 75965.5734  19.2%     -   12s
         0     0 75965.6137    0  900 93981.6532 75965.6137  19.2%     -   12s
         0     0 75965.6148    0  914 93981.6532 75965.6148  19.2%     -   12s
    H    0     0                    93965.819822 75965.6148  19.2%     -   13s
         0     0 75965.6148    0  893 93965.8198 75965.6148  19.2%     -   13s
         0     0 75966.0380    0  946 93965.8198 75966.0380  19.2%     -   13s
         0     0 75966.0380    0  829 93965.8198 75966.0380  19.2%     -   13s
         0     2 75966.0380    0  824 93965.8198 75966.0380  19.2%     -   14s
         1     4 75966.0380    1  813 93965.8198 75966.0380  19.2%   229   15s
    H   35    46                    92058.967966 75967.3872  17.5%   620   18s
    H   36    46                    76936.555536 75967.3872  1.26%   603   18s
    H   37    46                    76372.705929 75967.3872  0.53%   587   18s
    H   81    86                    76370.705929 75967.3872  0.53%   445   19s
        86    96 75970.1743   10  992 76370.7059 75967.3872  0.53%   439   20s
       159   169 75972.8183   14  839 76370.7059 75967.3872  0.53%   319   26s
    H  160   169                    76370.705856 75967.3872  0.53%   317   26s
    H  163   169                    76369.372596 75967.3872  0.53%   315   26s
       286   303 75991.5663   19  894 76369.3726 75967.3872  0.53%   230   30s
       367   317 75994.3067   21  977 76369.3726 75967.3872  0.53%   292   37s
       378   330 75994.5230   21  937 76369.3726 75967.3872  0.53%   362   43s
       414   359 76124.4064   23  998 76369.3726 75967.3872  0.53%   463   47s
       492   415     cutoff   25      76369.3726 75967.3872  0.53%   507   50s
       543   442     cutoff   24      76369.3726 75967.3872  0.53%   580   56s
       570   442     cutoff   34      76369.3726 75969.3184  0.52%   608   62s
    H  573   442                    76369.372512 75969.3184  0.52%   609   62s
       587   458 76137.2492    6  894 76369.3725 75969.3184  0.52%   638   65s
       656   478 76351.9009    8  889 76369.3725 75969.3184  0.52%   684   72s
       712   487     cutoff   11      76369.3725 75969.7346  0.52%   706   75s
       799   547 76123.0049    9  785 76369.3725 75971.1676  0.52%   766   82s
       863   564 76135.3730    7  985 76369.3725 75971.1676  0.52%   801   86s
       948   621 76143.0581   10  708 76369.3725 75971.1676  0.52%   843   92s
      1017   663     cutoff   12      76369.3725 75971.1676  0.52%   858   97s
      1096   728 76206.7599   12  645 76369.3725 75971.1676  0.52%   866  101s
      1200   809 76238.1776   13  640 76369.3725 75971.1676  0.52%   846  105s
      1440   920 76368.5010   25  484 76369.3725 75974.0394  0.52%   798  112s
      1586   998 76287.1487    8  701 76369.3725 75974.0394  0.52%   766  116s
      1737  1030     cutoff    9      76369.3725 75974.0394  0.52%   740  120s
      1810  1064     cutoff    9      76369.3725 75974.0394  0.52%   740  125s
      1883  1114     cutoff    9      76369.3725 75974.0394  0.52%   757  132s
      2001  1126     cutoff   27      76369.3725 75978.0542  0.51%   763  144s
      2038  1141 76230.9392   20  910 76369.3725 75978.0542  0.51%   796  153s
      2088  1209 76326.4799   21  821 76369.3725 75978.0542  0.51%   829  163s
      2198  1230     cutoff   20      76369.3725 75979.4320  0.51%   840  171s
      2261  1260     cutoff   15      76369.3725 75979.4320  0.51%   865  181s
      2339  1266 76207.9812   15  843 76369.3725 75979.4320  0.51%   878  191s
    H 2352  1266                    76369.372493 75979.4320  0.51%   888  191s
      2366  1367 76302.0489   17  754 76369.3725 75979.4320  0.51%   894  201s
      2535  1368 76208.2649   12  829 76369.3725 75979.4320  0.51%   877  205s
      2538  1370 76347.2978   31  755 76369.3725 75979.4320  0.51%   876  212s
      2544  1374 76367.3247   44  762 76369.3725 75993.8835  0.49%   873  216s
      2558  1383 76362.3598   17  813 76369.3725 76000.5854  0.48%   869  220s
      2565  1388 76040.0682    6  773 76369.3725 76032.4202  0.44%   866  225s
      2577  1396 76363.7521   41  814 76369.3725 76044.6414  0.43%   862  230s
      2584  1401 76198.5720   27  943 76369.3725 76045.4803  0.42%   860  235s
      2592  1406 76354.3949   22  917 76369.3725 76048.4102  0.42%   857  241s
      2601  1413 76357.9323   50  929 76369.3725 76048.6455  0.42%   885  247s
      2602  1414 76365.7715   55  738 76369.3725 76048.6522  0.42%   885  251s
      2608  1418 76352.3371   20  946 76369.3725 76048.6522  0.42%   883  255s
      2619  1425 76353.0790   43  836 76369.3725 76054.9104  0.41%   879  261s
      2625  1429 76354.5087   21  801 76369.3725 76055.6989  0.41%   877  265s
      2633  1435 76283.9236   14  918 76369.3725 76055.6989  0.41%   874  270s
      2658  1460 76057.0014   28  969 76369.3725 76056.8965  0.41%   896  275s
      2688  1478 76063.4682   29  880 76369.3725 76056.9583  0.41%   899  280s
      2709  1481 76063.7322   30  877 76369.3725 76056.9583  0.41%   903  285s
      2751  1467 76121.1501   32  843 76369.3725 76056.9583  0.41%   906  291s
      2803  1436 76170.2600   34  826 76369.3725 76056.9583  0.41%   908  299s
      2820  1434 76287.2839   34  737 76369.3725 76056.9583  0.41%   913  301s
      2860  1416     cutoff   35      76369.3725 76062.4630  0.40%   917  306s
      2931  1403 76246.5849   32  596 76369.3725 76062.4630  0.40%   910  311s
      3102  1425 76363.4387   42  309 76369.3725 76062.4630  0.40%   884  316s
      3288  1381 76158.6131   32  741 76369.3725 76063.6886  0.40%   849  321s
      3377  1363 76302.7944   37  437 76369.3725 76063.6886  0.40%   845  325s
      3436  1347 76346.7969   39  459 76369.3725 76063.6886  0.40%   838  332s
    H 3437  1274                    76369.372471 76063.6886  0.40%   838  332s
      3458  1290 76350.3118   40  499 76369.3725 76063.6886  0.40%   835  335s
      3694  1243 76342.0630   61  481 76369.3725 76272.0081  0.13%   799  340s
      3962  1172     cutoff   58      76369.3725 76336.7477  0.04%   752  345s
      4260  1082 76354.0817   71  523 76369.3725 76342.6575  0.03%   707  350s
      4666   947 76350.0466   63  589 76369.3725 76346.2908  0.03%   654  355s
      5087   802 76355.9659   57  457 76369.3725 76350.6848  0.02%   609  363s
      5348   730 76358.2772   60  522 76369.3725 76353.1382  0.02%   582  368
     5848   496     cutoff   72      76369.3725 76356.8278  0.02%   537  374s
      6911    17 76364.4056   72  252 76369.3725 76358.3448  0.01%   462  379s

    Cutting planes:
      Gomory: 2
      Cover: 2
      Projected implied bound: 2
      MIR: 101
      Mixing: 2
      StrongCG: 5
      Flow cover: 22
      GUB cover: 1
      Inf proof: 3
      Zero half: 5
      RLT: 6
      Relax-and-lift: 2

    Explored 7738 nodes (3273161 simplex iterations) in 379.66 seconds (519.24 work units)
    Thread count was 12 (of 12 available processors)

    Solution count 10: 76369.4 76369.4 76370.7 ... 95199.7

    Optimal solution found (tolerance 1.00e-04)
    Best objective 7.636937247086e+04, best bound 7.636937247086e+04, gap 0.0000%

    Please see the .LP file of this constraint and have a look at Spinningusage[125,85] constraint only.

    File : https://drive.google.com/file/d/1NkGdJF2BnobqRWsaR4YjC6AAkRANUZz6/view?usp=sharing

    Now please take a look at this solution file and see Tasks[17,80]. Its value is 1. Have a look.

    File : https://drive.google.com/file/d/1eFpmm8QB-pFL0VW-IlBEOs1m6Yjcvgun/view?usp=sharing

    Now look at the SpinningResource[125,85] in this solution file. It should be 34. How come it is 0 ?

    It is a simple calculation from these two files.

    I am trying to understand this unusual error but unable to find the glitch.

    Thank you,

    Margi

    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    Now look at the SpinningResource[125,85] in this solution file. It should be 34. How come it is 0 ?

    Everything is correct. Using the solution values, constraint SpinningResource[125,85] reads

         - 34 Tasks[17,80] + SpinningResource[125,85] <= 0
    => - 34 * 1 + 0 <= 0
    <=> 0 <= 34

    which is a correct inequality. So it looks like setting \(\texttt{Tasks[17,80]=1}\) is required somewhere else and \(\texttt{SpinningResource[125,85]}\) is forced to \(0\) from somewhere else.

    It is probably the case that this set of constraints

    R16926: SpinningResource[125,85] - SpinningResource[125,86] = 0
     R16927: SpinningResource[125,85] - SpinningResource[125,87] = 0
     R16928: SpinningResource[125,85] - SpinningResource[125,88] = 0
     R16929: SpinningResource[125,86] - SpinningResource[125,87] = 0
     R16930: SpinningResource[125,86] - SpinningResource[125,88] = 0
     R16931: SpinningResource[125,87] - SpinningResource[125,88] = 0
     R16932: SpinningResource[125,89] - SpinningResource[125,90] = 0
     R16933: SpinningResource[125,89] - SpinningResource[125,91] = 0
     R16934: SpinningResource[125,89] - SpinningResource[125,92] = 0
     R16935: SpinningResource[125,90] - SpinningResource[125,91] = 0
     R16936: SpinningResource[125,90] - SpinningResource[125,92] = 0
     R16937: SpinningResource[125,91] - SpinningResource[125,92] = 0
     R16938: SpinningResource[125,93] - SpinningResource[125,94] = 0
     R16939: SpinningResource[125,93] - SpinningResource[125,95] = 0
     R16940: SpinningResource[125,93] - SpinningResource[125,96] = 0
     R16941: SpinningResource[125,94] - SpinningResource[125,95] = 0
     R16942: SpinningResource[125,94] - SpinningResource[125,96] = 0
     R16943: SpinningResource[125,95] - SpinningResource[125,96] = 0

    forces it to \(0\), despite the fact that \(\texttt{SpinningResource[125,85]}\) would be allowed to be \(>0\).

    Best regards,
    Jaromił

    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    When I run the MILP, sometimes it shows like below :

    See the warning.

    Does it mean anything with the optimal result ?

     56332 15177 100409.197   75  753 100424.350 100348.931  0.08%   514 1957s
    H56340 15177                    100424.35033 100348.931  0.08%   514 1957s
     56690 15117     cutoff   72      100424.350 100349.876  0.07%   515 2006s
    H57125 14921                    100423.61460 100350.094  0.07%   516 2006s
     58185 14781 100398.161   76  830 100423.615 100352.565  0.07%   518 2065s
     59681 14574 100411.355   74 1025 100423.615 100356.098  0.07%   522 2112s
     61063 14312 100420.766   73  733 100423.615 100359.914  0.06%   529 2171s
     62310 14082     cutoff   77      100423.615 100363.616  0.06%   535 2224s
     63770 13897     cutoff   71      100423.615 100367.853  0.06%   541 2281s
     65040 13490 100414.794   84  850 100423.615 100372.046  0.05%   546 2341s
    *65209 13490              98    100423.61446 100372.127  0.05%   547 2341s
     66538 13688     cutoff   74      100423.614 100377.932  0.05%   551 2397s
     69564 13836 100414.208   89  664 100423.614 100384.277  0.04%   545 2453s
     72215 13864 100392.663   75 1010 100423.614 100387.590  0.04%   537 2480s
     73878 13860 100405.075   84  697 100423.614 100389.628  0.03%   533 2505s
     75356 13863     cutoff   78      100423.614 100391.065  0.03%   530 2532s
     76956 13852 100415.380   81  842 100423.614 100392.544  0.03%   527 2567s
     78557 13832 100418.006   87  958 100423.614 100394.024  0.03%   523 2600s
     79876 13787     cutoff   86      100423.614 100394.920  0.03%   521 2626s
     81408 13645     cutoff   76      100423.614 100396.164  0.03%   519 2656s
     82806 13512     cutoff   84      100423.614 100397.136  0.03%   517 2692s
     84156 13309     cutoff   79      100423.614 100398.134  0.03%   516 2726s
     85527 13076 100409.509   77  836 100423.614 100399.188  0.02%   515 2755s
     86661 12740     cutoff   83      100423.614 100399.939  0.02%   515 2787s
     87832 12369     cutoff   77      100423.614 100401.202  0.02%   516 2828s
     88989 11980     cutoff   83      100423.614 100402.298  0.02%   517 2862s
     90135 11488 100419.636   98  649 100423.614 100403.313  0.02%   518 2894s
     91404 10913     cutoff   74      100423.614 100404.739  0.02%   518 2937s
     92817 10213     cutoff  123      100423.614 100405.925  0.02%   519 2985s
     94217  9543     cutoff  101      100423.614 100407.958  0.02%   519 3026s
     96345  8877 infeasible   88      100423.614 100409.917  0.01%   516 3081s
     98856  8055     cutoff   78      100423.614 100411.685  0.01%   511 3132s
     101814  7332 100420.024  142  382 100423.614 100413.224  0.01%   504 3171s

    Cutting planes:
      Gomory: 44
      Cover: 231
      Implied bound: 1
      Projected implied bound: 18
      Clique: 2
      MIR: 136
      Mixing: 2
      StrongCG: 8
      Flow cover: 77
      Inf proof: 8
      Zero half: 46
      Mod-K: 1
      RLT: 19
      Relax-and-lift: 63

    Explored 105062 nodes (52212531 simplex iterations) in 3172.34 seconds (3034.75 work units)
    Thread count was 12 (of 12 available processors)

    Solution count 10: 100424 100424 100424 ... 100432

    Optimal solution found (tolerance 1.00e-04)
    Warning: max constraint violation (1.6190e-06) exceeds tolerance
    Warning: max general constraint violation (1.6190e-06) exceeds tolerance
    Best objective 1.004236144608e+05, best bound 1.004146711839e+05, gap 0.0089%
    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    Hi Margi,

    The warning means that there is a constraint which has a violation slightly above the default FeasibilityTol parameter value. It is usually not an issue as long as you check the optimal solution point before using it for your application.

    In this particular case, some general constraint is violated. Which general constraints do you use in your model? General constraints are the ones which are added via an addGenConstrXxx() method.

    You can usually decrease the violation by decreasing the value of the FeasibilityTol parameter or for general constraints, by either tightening the bounds of the argument variables and/or experimenting the parameters PreSOS1BigM and PreSOS2BigM.

    Best regards,
    Jaromił

    0
  • Margi Shah
    Gurobi-versary
    Thought Leader
    Curious

    Hi Jaromił Najman,

    Thank you for letting me know about this.

    I was just wondering if optimization programs can use the GPU?



    def buildModel():
    ############################################ price and generation data #############################################

    ####################### Electricity price ##########################################################
    energy_price_hour = [33.28, 30.00, 29.15, 28.49, 34.66, 50.01,
    71.52, 77.94, 81.97, 87.90, 92.76, 94.98,
    92.31, 90.03, 90.09, 87.44, 85.37, 79.97,
    79.92, 77.83, 76.28, 65.06, 53.07, 34.16]

    # making the list as per 96 time slots
    price_energy = []
    for price in energy_price_hour:
    price_energy = price_energy + [int(price)] * int(60 / rtn_t0)..........................................





    ;................................

    Objective_value = []
    for i in range(no_of_episodes):
    print(f"Running episode {i}")
    objval = buildModel().cuda()
    Objective_value.append(objval)



    print("Objective value:", Objective_value)

    I try the function to use cuda if possible, but it seems throwing this error.

    Is there a way to enable cuda ? I am sure my system has inbuilt GPU, as seen below:

    Best regards,
    Margi

    0
  • Jaromił Najman
    Gurobi Staff Gurobi Staff

    Hi Margi,

    Currently, it is not possible to execute Gurobi on a GPU.

    Best regards,
    Jaromił

    0

Please sign in to leave a comment.
