Some constraints are not implemented

# constraint (1.4)
for k in range(data.vehicleNum):
    expr1 = LinExpr(0)
    expr2 = LinExpr(0)
    for j in range(1, 6):
        expr1.addTerms(1, X[0][j][k])
    for i in range(1, 6):
        expr2.addTerms(1, X[i][0][k])
    model.addConstr(expr1 == expr2, "c1.4")
    expr1.clear()
    expr2.clear()

for k in range(data.vehicleNum):
    expr = LinExpr(0)
    for i in range(1, 6):
        expr.addTerms(1, X[i][0][k])
    model.addConstr(expr == 1, "c1.4_1")
    expr.clear()

# constraint (1.5)
for i in range(1, data.nodeNum):
    expr1 = LinExpr(0)
    expr2 = LinExpr(0)
    for k in range(data.vehicleNum):
        expr1.addTerms(1, C[i][k])
        for d in range(data.droneNum):
            expr2.addTerms(1, Ct[i][k][d])

    model.addConstr(expr1 + expr2 == 1, "c1.5")
    expr1.clear()
    expr2.clear()

for i in range(1, 6):
    expr = LinExpr(0)
    for k in range(data.vehicleNum):
        expr.addTerms(1, C[i][k])

    model.addConstr(expr == 1, "c1.5_1")
    expr.clear()

for i in range(6, 10):
    expr = LinExpr(0)
    for k in range(data.vehicleNum):
        for d in range(data.droneNum):
            expr.addTerms(1, Ct[i][k][d])

    model.addConstr(expr == 1, "c1.5_2")
    expr.clear()

# constraint (1.6)
for k in range(data.vehicleNum):
    for j in range(1, 6):  # j∈Ct, 非隔离区节点集合
        expr1 = LinExpr(0)
        expr2 = LinExpr(0)
        for i in range(1, 6):
            if(i!=j):
                expr1.addTerms(1, X[i][j][k])
        for l in range(1, 6):
            if(l!=i):
                expr2.addTerms(1, X[j][l][k])

        model.addConstr(expr1 == expr2, "c1.6")
        expr1.clear()
        expr2.clear()

# constraint (1.7)
for k in range(data.vehicleNum):
    for d in range(data.droneNum):
        for j in range(6, 10):
            expr1 = LinExpr(0)
            expr2 = LinExpr(0)
            for i in range(6, 10):
                if(i!=j):
                    expr1.addTerms(1, Y[i][j][k][d])
                    expr2.addTerms(1, Y[j][i][k][d])

            model.addConstr(expr1 == expr2, "c1.7")
            expr1.clear()
            expr2.clear()

# constraint (1.8)
for k in range(data.vehicleNum):
    for d in range(data.droneNum):
        expr1 = LinExpr(0)
        expr2 = LinExpr(0)
        for i in range(0, 5):
            expr1.addTerms(1, Vl[i][k][d])
        for j in range(1, 6):
            expr2.addTerms(1, Vr[j][k][d])

        model.addConstr(expr1 == expr2, "c1.8")
        model.addConstr(expr1 <= 1, "c1.8_1")
        expr1.clear()
        expr2.clear()


# constraint (1.9)
for k in range(data.vehicleNum):
    for j in range(1, 6):
        expr = LinExpr(0)
        for i in range(0, 6):
            if(i!=j):
                expr.addTerms(1, X[i][j][k])

        model.addConstr(C[j][k] * (expr - 1) == 0, "c1.9")
        expr.clear()

# constraint (1.10)
for k in range(data.vehicleNum):
    for j in range(1, 6):
        expr = LinExpr(0)
        for i in range(0, 6):
            if (i != j):
                expr.addTerms(1, X[j][i][k])

        model.addConstr(C[j][k] * (expr - 1) == 0, "c1.10")
        expr.clear()

# constraint (1.11)
for d in range(data.droneNum):
    for j in range(6, 10):
        for k in range(data.vehicleNum):
            expr = LinExpr(0)
            for i in range(data.nodeNum):
                if (i != j):
                    expr.addTerms(1, Y[i][j][k][d])

            model.addConstr(Ct[j][k][d] * (expr - 1) == 0, "c1.11")
            expr.clear()

# constraint (1.12)
for d in range(data.droneNum):
    for j in range(6, 10):
        for k in range(data.vehicleNum):
            expr = LinExpr(0)
            for i in range(data.nodeNum):
                if (i != j):
                    expr.addTerms(1, Y[j][i][k][d])

            model.addConstr(Ct[j][k][d] * (expr - 1) == 0, "c1.12")
            expr.clear()

# constraint (1.13)
for d in range(data.droneNum):
    for k in range(data.vehicleNum):
        for i in range(0, 5):  # Vl
            expr = LinExpr(0)
            for j in range(6, 10):  # Cd
                if (i != j):
                    expr.addTerms(1, Y[i][j][k][d])

            model.addConstr(expr == Vl[i][k][d], "c1.13")
            expr.clear()

# constraint (1.14)
for d in range(data.droneNum):
    for k in range(data.vehicleNum):
        for i in range(1, 6):  # Vr
            expr = LinExpr(0)
            for j in range(6, 10):  # Cd
                if (i != j):
                    expr.addTerms(1, Y[j][i][k][d])

            model.addConstr(expr == Vr[i][k][d], "c1.14")
            expr.clear()

# constraint (1.15)
for k in range(data.vehicleNum):
    for l in range(data.droneNum):
        for i in range(0, 5):  # Vl
            expr = LinExpr(0)
            for j in range(0, 6):
                if (i != j):
                    expr.addTerms(1, X[j][i][k])

            model.addConstr(expr >= P[k][l] * Vl[i][k][l], "c1.15")
            expr.clear()

# constraint (1.16)
for k in range(data.vehicleNum):
    for l in range(data.droneNum):
        for i in range(1, 6):  # Vr
            expr = LinExpr(0)
            for j in range(0, 6):
                if (i != j):
                    expr.addTerms(1, X[j][i][k])

            model.addConstr(expr >= P[k][l] * Vr[i][k][l], "c1.16")
            expr.clear()

# constraint (1.17)
# i和j的关系？搭载无人车d的卡车k应先到达无人车d的释放节点Vl，后到达该无人车的回收节点Vr
# 临时变量temp表示乘积 i应该用所有节点吗
for k in range(data.vehicleNum):
    for l in range(data.droneNum):
        for i in range(0, 5):
            for j in range(1, 6):
                for p in range(data.nodeNum):
                    if(i != j):
                        model.addConstr(temp_2[p][k][l] == Vl[i][k][l] * Vr[j][k][l], name="c1.17")
                        model.addConstr(temp_2[p][k][l] >= 0 + eps - M * (1 - b), name="c1.17_1")
                        model.addConstr((b == 1) >> (A[i][k] - A[j][k] >= 0), name='c1.17_2')

# constraint (1.18)
for i in range(0, 5):
    for k in range(data.vehicleNum):
        for d in range(data.droneNum):
            model.addConstr(temp[i][k][d] == a[i][k][d] - (A[i][k] + s[i][k][d]))
            model.addConstr(temp_1[i][k][d] == max_(temp[i][k][d], constant=0))
            model.addConstr(A[i][k] >= a[i][k][d] + eps - M * (1 - b), name="conStr1")
            model.addConstr(A[i][k] <= a[i][k][d] + M * b, name="conStr2")
            model.addConstr((b == 0) >> (r[i][k][d] == A[i][k] + temp_1[i][k][d] + data.W), name="conStr3")
            model.addConstr((b == 1) >> (r[i][k][d] == A[i][k] + data.W), name="conStr4")

# constraint (1.19)
for k in range(data.vehicleNum):
    for d in range(data.droneNum):
        for i in range(data.nodeNum):
            for j in range(data.nodeNum):
                if (i != j):
                    model.addConstr(a[j][k][d] - a[i][k][d] >= s[i][k][d] + t[i][j][k][d] - big_M + big_M * Y[i][j][k][d], "c1.19")

# constraint (1.20)
for k in range(data.vehicleNum):
    for i in range(data.nodeNum):
        for j in range(data.nodeNum):
            if(i != j):
                model.addConstr(A[j][k] - A[i][k] >= S[i][k] + T[i][j][k] - big_M + big_M * X[i][j][k], "c1.20")

Solution count 1: 0

Optimal solution found (tolerance 1.00e-04)
Best objective 0.000000000000e+00, best bound 0.000000000000e+00, gap 0.0000%
['C', '2', '0'] = 1
['C', '3', '0'] = 1
['C', '4', '0'] = 1
['C', '5', '0'] = 1
['Ct', '7', '1', '0'] = 1
['C', '1', '1'] = 1
['Ct', '6', '1', '1'] = 1
['Ct', '9', '2', '0'] = 1
['Ct', '8', '2', '1'] = 1
['X', '0', '5', '0'] = 1
['X', '1', '2', '0'] = 1
['X', '1', '3', '0'] = 1
['X', '1', '4', '0'] = 1
['X', '2', '1', '0'] = 1
['X', '3', '1', '0'] = 1
['X', '4', '1', '0'] = 1
['X', '5', '0', '0'] = 1
['Y', '5', '7', '1', '0'] = 1
['Y', '7', '0', '1', '0'] = 1
['X', '0', '1', '1'] = 1
['X', '1', '0', '1'] = 1
['Y', '5', '6', '1', '1'] = 1
['Y', '6', '0', '1', '1'] = 1
['Y', '5', '9', '2', '0'] = 1
['Y', '9', '0', '2', '0'] = 1
['X', '0', '1', '2'] = 1
['X', '3', '0', '2'] = 1
['Y', '5', '8', '2', '1'] = 1
['Y', '8', '0', '2', '1'] = 1

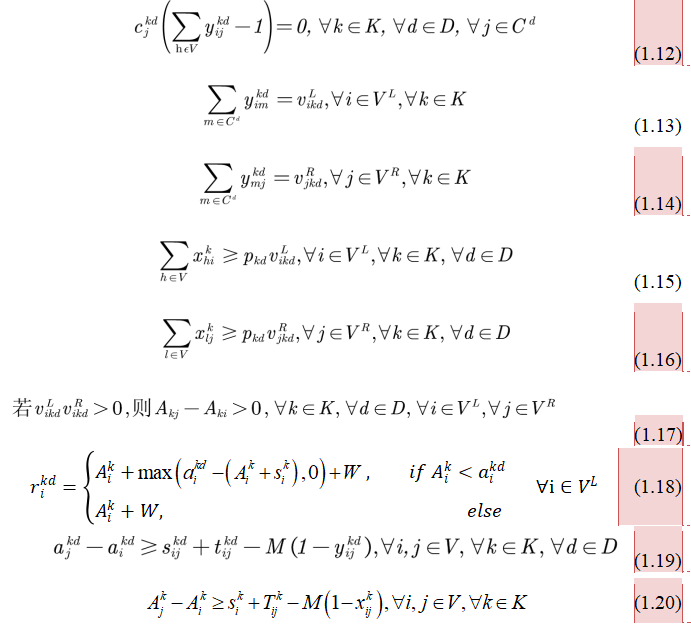

The result doesn't satisfy the constraint 13 and 14, all Vl and Vr are 0.

正式なコメント

Simranjit Kaur

Gurobi Staff

2026年11月13日 01:30

This post is more than two years old. Some information may not be up to date. For current information, please check the Gurobi Documentation or Knowledge Base. If you need more help, please create a new post in the community forum, or try Gurobot, our chatbot interface offering instant, expert-level support.

Riley Clement

2024年02月18日 06:51

Hi,

Can I suggest replacing your code for 1.13 with the following:

# constraint (1.13)
con_113 = []
for d in range(data.droneNum):
    for k in range(data.vehicleNum):
        for i in range(0, 5):  # Vl
            expr = LinExpr(0)
            for j in range(6, 10):  # Cd
                if (i != j):
                    expr.addTerms(1, Y[i][j][k][d])

            model.addConstr(expr == Vl[i][k][d], "c1.13")
            con_113.append((expr, Vl[i][k][d]))

then after the optimization use the following to inspect these constraints:

biggest_violation = 0
for expr, v in con_113:
    print(expr.getValue(), v.X)
    biggest_violation = max(biggest_violation, abs(expr.getValue() - v.X))
print("number of constraints 1.13:", len(con_113))
print("biggest_violation:", biggest_violation)

What is the biggest violation reported?

- Riley

2024年02月18日 06:52

(as a side note there is no reason to use LinExpr.clear() in your code, I would remove these calls for simplicity sake)
