Three conditions in the objective function

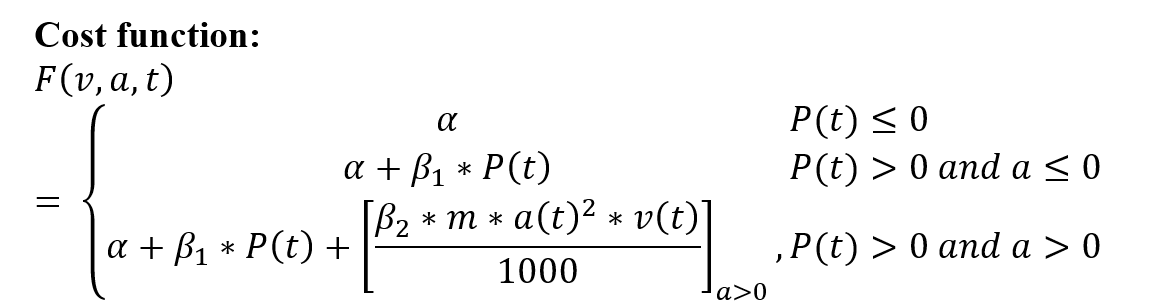

AnsweredI am trying to model three conditions in the objective function, which is shown as below. In this function, alpha, beta1, beta2 and m are all constants and the rest of symbols represent variables that are to be determined during the optimization process. I am not sure how to model these three conditions efficiently with Gurobi. Thank you for any help.
-
Official comment
This post is more than two years old. Some information may not be up to date. For current information, please check the Gurobi Documentation or Knowledge Base. If you need more help, please create a new post in the community forum, or try Gurobot, our chatbot interface offering instant, expert-level support. -
I noticed three are several posts discussing how to model conditional constraints with Gurobi. But there currently is not a particular example or demonstration how to model three conditions (and even nested conditions). I hope this post can accomodate such insufficiency.
0 -
Hi Shaojie,
You can express this type of objective using auxiliary variables. Please find below some comments and a code example that I hope will help you with your problem.- Gurobi can handle bilinear terms, so for each multiplication of more than two variables, we need to define auxiliary variables until we are left with only bilinear terms; here they are called a_squared, term_1, and term_2.
- To activate and deactivate terms of the objective function, we need conditional variables; here, they are called p_positive and a_positive.
- Because the third case of your objective function depends on two conditions, I added another auxiliary variable (p_and_a_positive) which is positive if both a and p are positive, using a general constraint
M = 1e6 # Big M
E = 1e-6 # Epsilon
p_positive = model.addVars(T, vtype=GRB.BINARY)
a_positive = model.addVars(T, vtype=GRB.BINARY)
for t in T:
model.addConstr(p[t] >= E-M*(1-p_positive[t])) # truly smaller than, using Epsilon
model.addConstr(p[t] <= M*p_positive[t])
model.addConstr(a[t] >= E-M*(1-a_positive[t])) # truly smaller than, using Epsilon
model.addConstr(a[t] <= M*a_positive[t])
p_and_a_positive = model.addVars(T)
for t in T:
model.addGenConstrAnd(p_and_a_positive[t], [p_positive[t], a_positive[t]])
a_squared = model.addVars(T)
for t in T:
model.addConstr(a_squared[t] == a[t]**2)
term_1 = model.addVars(T)
for t in T:
model.addConstr(beta_1*p[t] == term_1[t])
term_2 = model.addVars(T)
for t in T:
model.addConstr((beta_2*m*a_squared[t]*v[t])/1000 == term_2[t])
model.setObjective(gp.quicksum(alpha + p_positive[t]*term_1[t] + p_and_a_positive[t]*term_2[t] for t in T))0 -
Thank you very much. I think this solution (the code) is very helpful and I can learn a lot from these codes.
0
